MFC2120 Glass Tube Miniature Cartridge Fuse Fast Acting 12A 250V/150V 6*32mm

  • 1
  • 2
  • 3

Brand Name : RFan

Model Number : MTS1500A

Certification : UL.TUV.ROHS

Place of Origin : China

MOQ : 3000

Price : 0.02-0.5

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1KK/M

Delivery Time : 5-7days

Packaging Details : 1000/Bag

Vac : 125V/250V

Agency : UL,CUL,KC,VDE,CQC

Operating Temperature Range : -55°C to +125°C

Blow Type : Fast-acting

Fuse Style : Cartridge

Lead Wire : Tin Plated Copper

Operating Temp Range : -55℃～+125℃

Halogen Free : Yes

Contact Now

MFC2120 12A 250V/150V 6*32mm Fast-Acting Glass Tube Fuse Disposable Fuse

MFC Series 6*32mm Fast-Acting Glass Tube Fuse

MFC2120 Glass Tube Miniature Cartridge Fuse Fast Acting 12A 250V/150V 6*32mm


●Materials

Part Name Material
Cap Nickel Plated Brass
Body Glass Tube
Fuseelement Alloy
Lead wire Tin Plated Copper

●Packaging

Packing type Description
Bulk 200PCS per bag
Box 4,000PCS per box

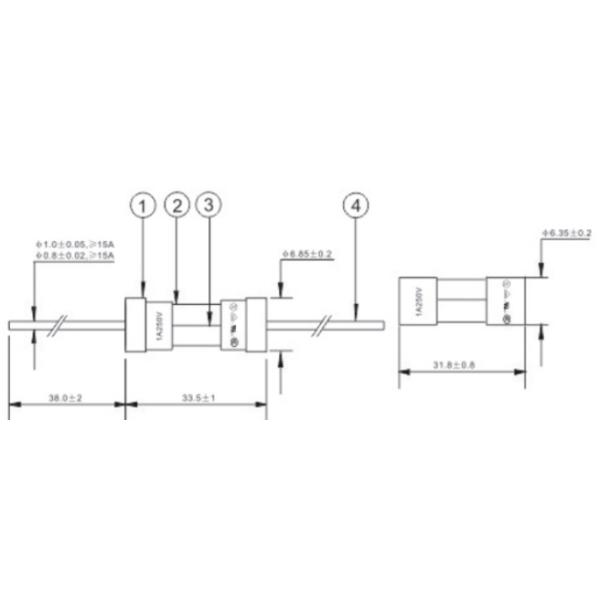

●Dimensions
MFC2120 Glass Tube Miniature Cartridge Fuse Fast Acting 12A 250V/150V 6*32mm

●Electrical Characteristics

%of Ampere Rating(In) Blowing Time
100%*In (4 hours Min)
135%*In (1 hour Max)
200%*In (5 sec Max)

●Fuse List

Catalog Number Ampere Rating Voltage Rating Breaking Capacity

Melting

Integral(As
MFC0100A/B 100mA 250V/125V

0000A@125VAC (100mA~10A);

35A@250VAC

(100mA~1A);

100A@250VAC

(1.25A~3.5A);

200A@250VAC (4A~10A).

 0.003
MFC0160A/B 160mA 250V/125V 0.008
MFC0200A/B 200mA 250V/125V 0.02
MFC0250A/B 250mA 250V/125V 0.026
MFC0300A/B 300mA 250V/125V 0.047
MFC0315A/B 315mA 250V/125V 0.055
MFC0350A/B 350mA 250V/125V 0.072
MFC0400A/B 400mA 250V/125V 0.10
MFC0500A/B 500mA 250V/125V 0.16
MFC0630A/B 630mA 250V/125V 0.28
MFC0750A/B 750mA 250V/125V 0.49
MFC0800A/B 800mA 250V/125V 0.60
MFC1100A/B 1A 250V/125V 0.8
MFC1125A/B 1.25A 250V/125V 1.6
MFC1150A/B 1.5A 250V/125V 2.5
MFC1160A/B 1.6A 250V/125V 3.2
MFC1200A/B 2A 250V/125V 5.6
MFC1250A/B 2.5A 250V/125V 7.6
MFC1300A/B 3A 250V/125V 14
MFC1315A/B 3.15A 250V/125V 19
MFC1350A/B 3.5A 250V/125V 20
MFC1400A/B 4A 250V/125V 25
MFC1500A/B 5A 250V/125V 42
MFC1600A/B 6A 250V/125V 80
MFC1630A/B 6.3A 250V/125V 96
MFC1800A/B 8A 250V/125V 200
MFC2100A/B 10A 250V/125V 320
MFC2120A/B 12A 250V/125V 470
MFC2150A/B 15A 250V/125V 650
MFC2200A/B 20A 250V/125V 870
MFC2250A/B 25A 250V/125V 1320
MFC2300A/B 30A 250V/125V 1820
