STB1150 Subminiature Slow Blow Time Delay Fuse Axial Lead 1.5A 350V 3x7mm

Product Categories
Yantai Rongfan Electronic Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

STB1150 Subminiature Slow Blow Time Delay Fuse Axial Lead 1.5A 350V 3x7mm

  • 1
  • 2
  • 3

Brand Name : RFan

Model Number : STB1150

Certification : UL.TUV.ROHS

Place of Origin : China

MOQ : 6000

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1KK/M

Delivery Time : 5-10days

Packaging Details : 3000/Box

Contact Now

STB1150 1.5A 350V 3x7mm Time-Lag Subminiature Fuses Slow Blow Fuse Time Delay Fuse Element Axial Lead Fuse

STB Series 3x7mm Time-Lag Subminiature Fuses

STB1150 Subminiature Slow Blow Time Delay Fuse Axial Lead 1.5A 350V 3x7mm

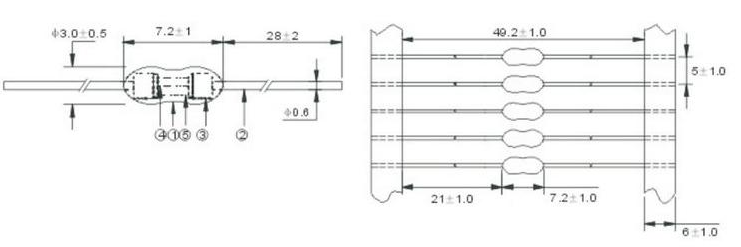

●Dimensions

STB1150 Subminiature Slow Blow Time Delay Fuse Axial Lead 1.5A 350V 3x7mm
●Materials


Part NameMaterial
Body EncapsulatedEpoxy Coated
Lead wireTin Plated Copper
CapNickelPlated Brass
Fuse elementAlloy wire
BodyNon-TransparentCeramic Tube


●Packaging

Packing typeDescription

Bulk

1,000PCS per bag
Tape3,000PCS per box


●Electrical Characteristics

%of Ampere Rating(In)Blowing Time
100%*In(4 hours Min)
200%*In(60 sec Max)


●Fuse List

Catalog NumberAm pere RatingVoltage RatingBreaking Capacity
STB0100A/B100mA250V/125V50A@125V/250VAC
STB0125A/B125mA250V/125V50A@125V/250VAC
STB0160A/B160mA250V/125V50A@125V/250VAC
STB0200A/B200mA250V/125V50A@125V/250VAC
STB0250A/B250mA250V/125V50A@125V/250VAC
STB0300A/B300mA250V/125V50A@125V/250VAC
STB0315A/B315mA250V/125V50A@125V/250VAC
STB0350A/B350mA250V/125V50A@125V/250VAC
STB0400A/B400mA250V/125V50A@125V/250VAC
STB0500A/B500mA250V/125V50A@125V/250VAC
STB0630A/B630mA250V/125V50A@125V/250VAC
STB0750A/B750mA250V/125V50A@125V/250VAC
STB0800A/B800mA250V/125V50A@125V/250VAC
STB1100A/B1A250V/125V50A@125V/250VAC
STB1125A/B1.25A250V/125V50A@125V/250VAC
STB1150A/B1.5A250V/125V50A@125V/250VAC
STB1160A/B1.6A250V/125V50A@125V/250VAC
STB1200A/B2A250V/125V50A@125V/250VAC
STB1250A/B2.5A250V/125V50A@125V/250VAC
STB1300A/B3A250V/125V50A@125V/250VAC
STB1315A/B3.15A250V/125V50A@125V/250VAC
STB1350A/B3.5A250V/125V50A@125V/250VAC
STB1400A/B4A250V/125V50A@125V/250VAC
STB1500A/B5A250V/125V50A@125V/250VAC
STB1630A/B6.3A250V/125V50A@125V/250VAC
