Automotive PPTC Resettable Fuse For Battery Protection

Name: Automotive PPTC Resettable Fuse For Battery Protection
Brand: RFan
Price: 0.02 USD

Wholesale Automotive PPTC Resettable Fuse For Battery Protection from china suppliers

Brand Name : RFan

Model Number : JK-P350

Certification : UL.TUV.ROHS

Place of Origin : China

MOQ : 1000

Price : 0.02-0.5

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3KK/M

Delivery Time : 5-7days

Packaging Details : 1000/Bag

Agency Approvals : UL, CSA, TUV

Operating Voltage Range : 6V - 30V

Current Rating : 0.7A - 14.1A

Rohs Compliant : Yes

Voltage Rating : 6V - 30V

Contact Now

Polymer PTC Resettable Fuse For Battery Protection Resettable Automotive Fuse

Features:

 Strap devices,Axial leaded

 Protection for NiCd/NiMH rechargesble battery packs,Li-ion/Polymer Li-ion battery

 Available in lead-free version

 Agency recognition:UL,CSA,TUV

Automotive PPTC Resettable Fuse For Battery Protection

Product Dimensions:

Automotive PPTC Resettable Fuse For Battery Protection

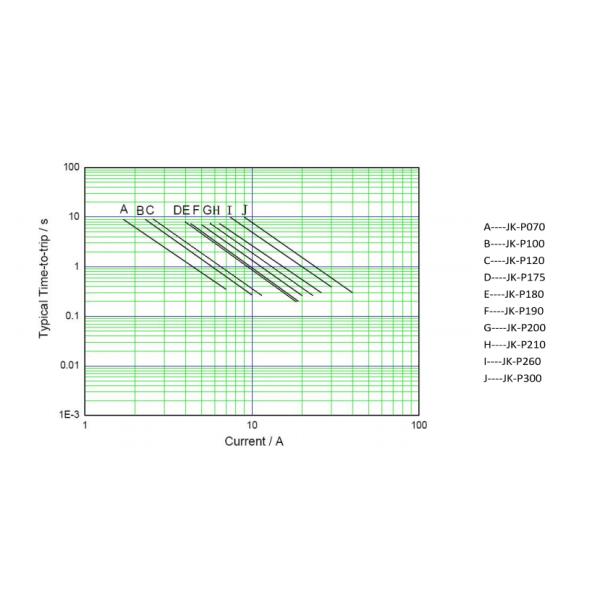

Typical Time-to-Trip Charts at 25℃

Automotive PPTC Resettable Fuse For Battery Protection Electrical Characteristic

Automotive PPTC Resettable Fuse For Battery Protection

Electrical Specifications:

Ihold=Hold current: maximum current device will not trip in 25℃ still air.

Itrip= Trip current: minimum current device will always trip in 25℃ still air.

Vmax=Maximum voltage device can withstand without damage at rated current(Imax).

Imax=Maximum fault current device can withstand without damage at rated voltage(vmax).

Pd max= Power dissipated when device is in the tripped state in 25℃ still air environment at rated voltage.

Max Time-to-trip=Maximum time to trip(s) at assigned current.

Rmin=Minimum device resistance prior to tripping at 25℃.

Rmax=Maximum device resistance prior to tripping at 25℃.

R1max=Maximum device resistance one hour after it is tripped at 25℃
